Airslide Belts

Airslide Belts

Airslide Belts which have been manufactured by Technical Fabrics partner Company for almost forty years, when the first conveyor lines were installed, using textiles to achieve material flow.
Continued research by our engineers, combined with the years of co-operation with both the manufacturers and end users of pneumatic conveying and handling equipment for powdered materials, has helped in the development of special woven fabrics for use in Silos, Hoppers and Stacks in the following industries:
• CEMENT WORKS
• LIME FACTORIES
• CHEMICAL AND MINING

Airslide Belts

A wide range of sizes with the following criteria can be supplied:
• Heights from 400mm to 1600mm.
• Roll lengths - standard 50 metres.
The multi layered fabrics are manufactured with different weights and thickness to achieve:
• Uniformity in the flow effect on the slide surface.
• Extremely high mechanical resistance to abrasion and tearing.
• Available with a wide range of air permeability's.
• Materials can be cut to size upon request.

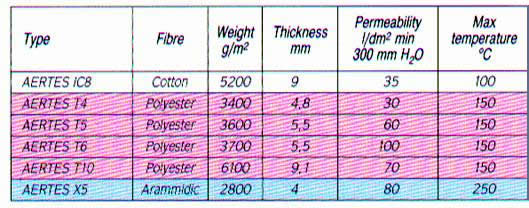

Airslide Belts Chart
